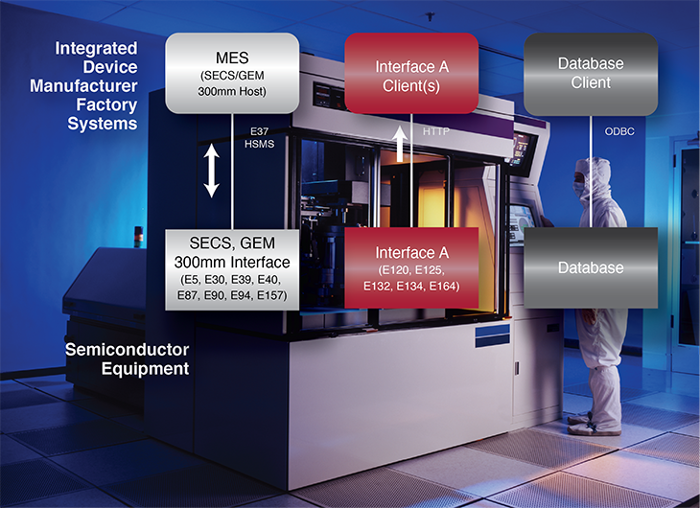

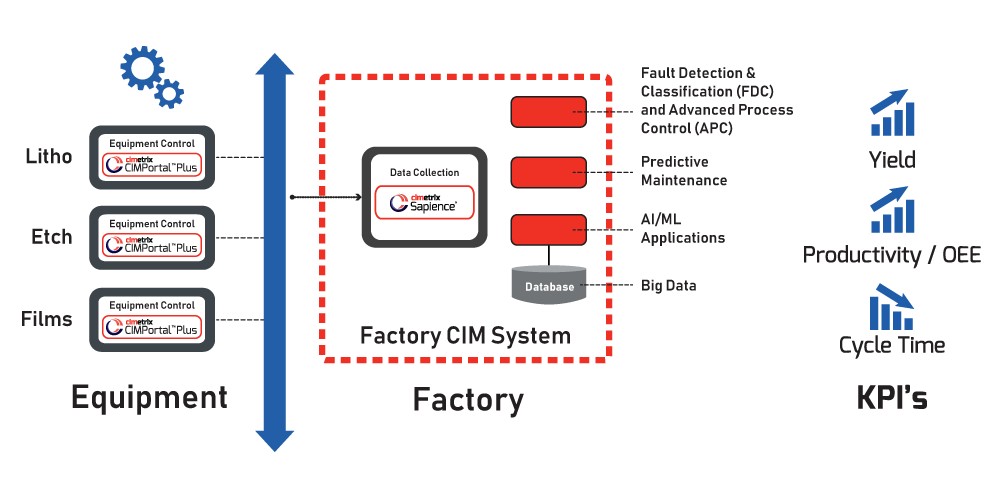

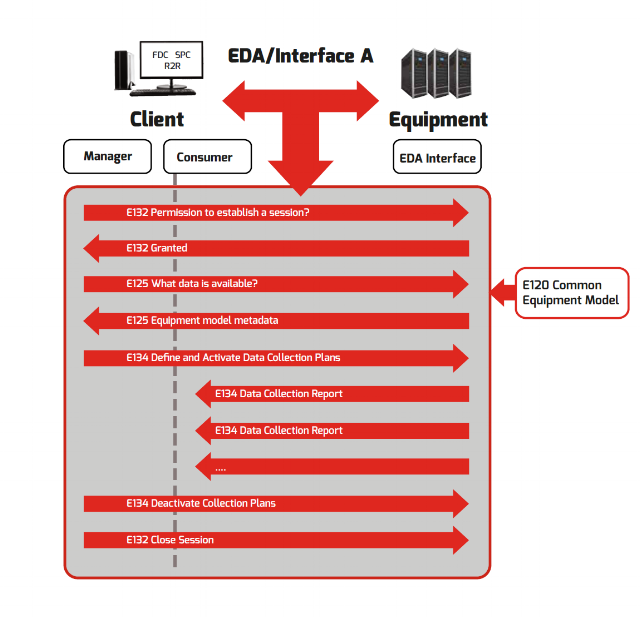

--- title: High-Volume Factory Data Collection description: Learn about the SEMI Interface A (EDA) standards from the experts of factory data collection and management, Cimetrix. image: https://www.cimetrix.com/hubfs/Blogs_Pics/Data-packets-blog.jpg --- [![Cimetrix-PDF-combined-logo](https://www.cimetrix.com/hs-fs/hubfs/logos/Cimetrix-PDF-combined-logo.png?width=361&height=100&name=Cimetrix-PDF-combined-logo.png "Cimetrix-PDF-combined-logo")](https://www.cimetrix.com?hsLang=en) [English](https://www.cimetrix.com/?hsLang=en) - [한국어](https://www.cimetrix.com/kr?hsLang=en) - [日本語](https://www.cimetrix.com/jp?hsLang=en) - [中文简体](https://www.cimetrix.com/cn?hsLang=en) - [中文繁體](https://www.cimetrix.com/tw?hsLang=en) - [ Products ** ](https://www.cimetrix.com/interfacea#) #### [Smart Connected Equipment](https://www.cimetrix.com/equipment?hsLang=en) - ##### Connectivity - [CIM300](https://www.cimetrix.com/cim300?hsLang=en) - [CIMConnect](https://www.cimetrix.com/cimconnect?hsLang=en) - [CIMPortal Plus](https://www.cimetrix.com/cimportal?hsLang=en) - ##### Control - [CIMControlFramework](https://www.cimetrix.com/cimcontrolframework?hsLang=en) - #### [Smart Connected Factory](https://www.cimetrix.com/factory?hsLang=en) - [Sapience](https://www.cimetrix.com/sapience?hsLang=en) - #### [Utilities](https://www.cimetrix.com/utilities?hsLang=en) - [ECCEPlus](https://www.cimetrix.com/ecce?hsLang=en) - [EquipmentTest](https://www.cimetrix.com/equipmenttest?hsLang=en) - [EDATester](https://www.cimetrix.com/edatester?hsLang=en) ##### Schedule a Demo Today! Click below for a demo or to speak with a rep. [Get Started](https://www.cimetrix.com/schedule-a-meeting?hsLang=en) - [ Platform ** ](https://www.cimetrix.com/sapience?hsLang=en) - [ Ecosystem ** ](https://www.cimetrix.com/interfacea#) - [Industries](https://www.cimetrix.com/industries?hsLang=en) - [Worldwide Partners](https://www.cimetrix.com/partners?hsLang=en) - [Training](https://www.cimetrix.com/training?hsLang=en) - [Support](https://www.cimetrix.com/support?hsLang=en) #### Schedule a Demo Today! Click below for a demo or to speak with a rep. [Get Started](https://www.cimetrix.com/schedule-a-meeting?hsLang=en) - [Technologies ** ](https://www.cimetrix.com/interfacea#) - [GEM](https://www.cimetrix.com/semi-secs-gem-intro?hsLang=en) - [PV2 Standard](https://www.cimetrix.com/pv2?hsLang=en) - [GEM300](https://www.cimetrix.com/gem300?hsLang=en) - [EDA/Interface A](https://www.cimetrix.com/interfacea) - [SEMI Standards](https://www.cimetrix.com/semi-standards?hsLang=en) #### Schedule a Demo Today! Click below for a demo or to speak with a rep. [Get Started](https://www.cimetrix.com/schedule-a-meeting?hsLang=en) - [Resources ** ](https://www.cimetrix.com/interfacea#) - [Resources Home](https://www.cimetrix.com/resources?hsLang=en) - [Datasheets](https://www.cimetrix.com/resources-datasheets?hsLang=en) - [Tech Overviews](https://www.cimetrix.com/resources-technical-overviews?hsLang=en) - [White Papers](https://www.cimetrix.com/resources-white-papers?hsLang=en) - [eBooks](https://www.cimetrix.com/resources-ebooks?hsLang=en) - [Case Studies](https://www.cimetrix.com/resources-case-studies?hsLang=en) - [Infographics](https://www.cimetrix.com/resources-infographics?hsLang=en) - [Videos](https://www.cimetrix.com/resources-videos?hsLang=en) - [Presentations](https://www.cimetrix.com/resources-presentations?hsLang=en) - [Company ** ](https://www.cimetrix.com/interfacea#) - ##### About - [About Us](https://www.cimetrix.com/about?hsLang=en) - [Contact](https://www.cimetrix.com/contact?hsLang=en) - [Leadership](https://www.cimetrix.com/leadership?hsLang=en) - [Investor Relations](https://www.cimetrix.com/investors?hsLang=en) - [Employment](https://www.cimetrix.com/employment?hsLang=en) - [Directions](https://www.cimetrix.com/directions?hsLang=en) - ##### News & Media - [Blog](https://www.cimetrix.com/blog?hsLang=en) - [News](https://www.cimetrix.com/news?hsLang=en) - [Events](https://www.cimetrix.com/events?hsLang=en) - [Products](http://#) - [Smart Connected Equipment](http://#) - [Connectivity](http://#) - [Control](http://#) - [Smart Connected Factory](http://#) - [HostConnect](http://#) - [FactoryInsight](http://#) - [Utilities](http://#) - [ECCEPlus](http://#) - [EDATester](http://#) - [TestConnect](http://#) - [GEMHost Messenger](http://#) - [Ecosystem](http://#) - [Industries](http://#) - [Worldwide Partners](http://#) - [Training](http://#) - [Support](http://#) - [Academic Partners](http://#) - [Standards (Technologies)](http://#) - [SECS/GEM](http://#) - [PV2](http://#) - [GEM300](http://#) - [EDA/Interface A](http://#) - [SEMI Standards](http://#) # SEMI EDA/Interface A Standards Overview The Equipment Data Acquisition (EDA, also known as Interface A) standards are a collection of SEMI standards intended to facilitate and improve communication between a factory's data gathering software applications and the factory equipment. The factory uses EDA to collect specific data from equipment, and then analyze that data to determine how best to increase productivity, improve product quality, and reduce costs. EDA does not replace the SEMI [GEM/SECS](https://www.cimetrix.com/semi-secs-gem-intro?hsLang=en) standards or the SEMI GEM300 standards, since EDA does not provide any features for equipment control or configuration. Instead, equipment suppliers support EDA in addition to other required interfaces to provide flexible, high-performance data collection capabilities. ![SEMI EDA/Interface A Standards](https://www.cimetrix.com/hs-fs/hubfs/social-suggested-images/EDA_Page_Pic%20700x508.png?width=700&name=EDA_Page_Pic%20700x508.png "SEMI EDA/Interface A Standards") As early as 2010, IC makers started requiring integrated EDA solutions from the equipment suppliers. Since then, the demand has continued to increase as IC makers realize the manufacturing benefits of analyzing detailed equipment and process data.  SEMI EDA/Interface A Standards Cimetrix Incorporated was at the forefront of the EDA/Interface A standards development from the beginning, and remains dedicated to the evolution and use of these standards. We collaborated with SEMATECH to develop the EDA Equipment Client Connection Emulator to support Freeze Version I (1105), and then for Freeze Version II (0710). Today, we offer Cimetrix [ECCE Plus](https://www.cimetrix.com/ecce?hsLang=en), which supports both versions of the EDA standards. EDA/Interface A is comprised of multiple SEMI standards all of which are available for download from the [SEMI website](http://www.semi.org/en/Standards/P_000787). The following five are the primary SEMI standards: - [E120](https://www.cimetrix.com/semi-e120?hsLang=en) Specification for the Common Equipment Model (CEM) - [E125](https://www.cimetrix.com/semi-e125?hsLang=en) Specification for Equipment Self Description (EqSD) - [E132](https://www.cimetrix.com/semi-e132?hsLang=en) Specification for Equipment Client Authentication and Authorization - [E134](https://www.cimetrix.com/semi-e134?hsLang=en) Specification for Data Collection Management - [E164](https://www.cimetrix.com/semi-e164?hsLang=en) Specification for EDA Common Metadata Both equipment and factory client applications implement interfaces via web services using SOAP/XML messages over HTTP or HTTPS connections, and those interfaces must comply with the specific SOAP/XML implementations standards E120.1, E125.1, E132.1, and E134.1. ## EDA/Interface A Client Operations  ## ![2022_CMTXPDF_EDA_BoothDiagram_v3](https://www.cimetrix.com/hs-fs/hubfs/images/2022_CMTXPDF_EDA_BoothDiagram_v3.png?width=1000&height=496&name=2022_CMTXPDF_EDA_BoothDiagram_v3.png) - Initially, each client must establish an authenticated session. - Next, the client can ask for the Equipment Model metadata (for an in-depth look at this topic, please view the video "[Equipment Modeling: E120/E125](https://www.cimetrix.com/equipment-modeling-e120-e125?hsLang=en)") information to see how the metadata model represents the data that can be collected through an EDA interface. - With this information a client application can define and activate Data Collection Plans (DCPs) - The equipment generates and sends Data Collection Reports to the client until the client deactivates the plans or becomes unavailable. - When shutting down properly, the client should close the session.   ## EDA/Interface A Freeze Versions Because the EDA standards continue to evolve and change, SEMI and its member companies initiated the concept of “freeze versions.” Each freeze identifies a specific version of the individual EDA standards that equipment suppliers and IC makers use as a unified set to implement the interface.  SEMI implemented the freeze version concept by creating two downloadable bundles of standard schema files: one for the 1105 freeze version, and another for the 0710 freeze version. These are available on the [SEMI website](http://www.semi.org/en/Standards). Unless the client and equipment are implementing the same version of the EDA standards, they cannot fully communicate and might be incompatible. This is the nature of SOAP/XML web services technology. The latest version is Freeze Version II (0710), and is the one required by all fabs for new equipment.  Freeze Version II includes the following standards: | **Standard** | **Document Revision** | **Schema Namespace Version** | **WSDL Namespace Version** | | --- | --- | --- | --- | | [E120](https://www.cimetrix.com/semi-e120?hsLang=en) Common Equipment Model | 0310 | E120-1-V0310 | N/A | | [E125](https://www.cimetrix.com/semi-e125?hsLang=en) Equipment Self-Description | 0710 | E125-1-V0710 | E125-1-V0710 | | E128 Specification for XML Message Structures | 0310 | E128-1-V0706 | N/A | | [E132](https://www.cimetrix.com/semi-e132?hsLang=en) Client Authentication and Authorization | 0310 | E132-1-V0310 | E132-1-V0310 | | [E134](https://www.cimetrix.com/semi-e134?hsLang=en) Data Collection Management | 0710 | E134-1-V0710 | E134-1-V0710 | | E138 Common Components | 0709 | E138-1-V0709 | N/A |   ## EDA/Interface A Terminology and Acronyms | **Term** | **Definition** | | --- | --- | | Access Control List (ACL) | Part of [E132](https://www.cimetrix.com/semi-e132?hsLang=en), the Client Authorization details that grant or deny Client sessions and impose restrictions on Clients access to specific EDA information and operations. | | Client Consumer | An EDA Client that receives the Data Collection Reports and other [E134](https://www.cimetrix.com/semi-e134?hsLang=en) consumer operations. | | Data Collection Plan (DCP) | Part of [E134](https://www.cimetrix.com/semi-e134?hsLang=en), a data gathering request that includes a set of Event Requests (with a configurable set of Parameters), Exception Requests (with a fixed set of Parameters), and Trace Requests (with a configurable set of Parameters). After a Data Collection Plan has successfully been created, it must be activated. Then the Client will receive the respective Data Collection Reports as configured in the plan. | | Data Collection Report (DCR) | The Equipment sends the requested data in this standard format, defined in [E134](https://www.cimetrix.com/semi-e134?hsLang=en). | | EDA | Equipment Data Acquisition, also known as Interface A. The combination of SEMI standards [E120](https://www.cimetrix.com/semi-e120?hsLang=en), E121, [E125](https://www.cimetrix.com/semi-e125?hsLang=en), E128, [E132](https://www.cimetrix.com/semi-e132?hsLang=en), [E134](https://www.cimetrix.com/semi-e134?hsLang=en), E138, and [E164](https://www.cimetrix.com/semi-e164?hsLang=en). | | Equipment | Equipment refers to the hardware and software received from equipment suppliers to perform work for the IC maker. In the context of EDA, Equipment refers to the EDA Server that represents the hardware and software to the Clients. | | Freeze Version | A stable set of guidelines for implementing SEMI EDA/Interface A standards. There are currently two freeze versions: - 1105, commonly referred to as Freeze Version I - 0710, commonly referred to as Freeze Version II | | Host | The software an IC maker runs to communicate with the Equipment. A Host typically refers to the SECS/GEM connection, but could also refer to a Client application using EDA. | | Metadata | Information that describes the data, such as when an Event occurs or the interpretation of a Parameter's value. | | Operation | An EDA transaction, method, or message initiated by an EDA client or server. Each operation has a name, well-defined format, and meaning. [E125](https://www.cimetrix.com/semi-e125?hsLang=en), [E132](https://www.cimetrix.com/semi-e132?hsLang=en), and [E134](https://www.cimetrix.com/semi-e134?hsLang=en) each define a set of operations for the client and server. | | Parameters | The set of data available for gathering from the Equipment's EDA/Interface A connection. | | Session | Also called an Authenticated Session, a Session is established between the Server and Client by following the [E132](https://www.cimetrix.com/semi-e132?hsLang=en) procedures. Once a Session is established, the Client can send authorized operation messages. | | SOAP | Simple Object Access Protocol (SOAP): To make the EDA/Interface A standards easier to implement, they use the SOAP protocol. It is a lightweight, XML-based protocol for exchange of information in a decentralized, distributed environment. See [www.w3.org/TR/2000/NOTE-SOAP-20000508](http://www.w3.org/TR/2000/NOTE-SOAP-20000508) for more information. | E164: Enabling Consistent Metadata The SEMI [E164](https://www.cimetrix.com/semi-e164?hsLang=en) standard, approved in July 2012, provides a single, agreed, interpretation of the various SEMI standards as represented in a common metadata definition, which will help drive consistency in how equipment suppliers implement the EDA standards. The Common Metadata will help remove some of the uncertainty that may have prevented many companies from developing factory client applications that can use the EDA data produced by the equipment. For an in-depth look at this topic, please view the video "[E164 - EDA Common Metadata](https://www.cimetrix.com/eda-in-depth#metadata)"). ## Testing EDA/Interface A Implementations Three types of tests are used to test compliance of a specific interface implementation to EDA standards: compliance, performance, and equipment model metadata. To test compliance and performance, download the [ISMI Equipment Data Acquisition (EDA) Evaluation Method](https://www.cimetrix.com/ismi-eda-evaluation-method-document-download?hsLang=en) for the July 2010 Standards Freeze Level document. This document defines the steps to manually evaluate the EDA interface for new or existing equipment, conversions, or a complete fab retool. You can also use the [Cimetrix EDATester product](https://www.cimetrix.com/edatester?hsLang=en) to test compliance and performance. The EDATester is an automated implementation of Evaluation Method document. Rather than manually executing the steps defined in the Evaluation Method document, the steps are executed in the EDATester code. To test the conformance of the equipment’s metadata model to the E164 standard, [download and use the EDA 0710 freeze version (Metadata Conformance Analyzer V1.2)](https://www.cimetrix.com/metadata-conformance-analyzer-v1.2?hsLang=en) of the MCA. The required input files for the MCA can be generated directly by both the [ECCE Plus](https://www.cimetrix.com/cimetrix-ecce-plus?hsLang=en) and the [EDATester](https://www.cimetrix.com/edatester?hsLang=en). Also, download the [Equipment Data Acquisition (EDA) Version 0710 Guidance document](https://www.cimetrix.com/eda-guidance-document-download?hsLang=en). This document provides technical guidance to facilitate consistent and complete metadata definitions according to SEMI E125. ## Mapping and Comparing EDA/Interface A to SECS/GEM To learn about Mapping EDA/Interface A to SECS/GEM or comparing the standards, click below: [![Learn More](https://hubspot-no-cache-na2-prod.s3.amazonaws.com/cta/default/41260/b3d7f2cb-5973-42db-a5ab-8cc9120022bf.png)](https://hubspot-cta-redirect-na2-prod.s3.amazonaws.com/cta/redirect/41260/b3d7f2cb-5973-42db-a5ab-8cc9120022bf) [![Ask an Expert](https://hubspot-no-cache-na2-prod.s3.amazonaws.com/cta/default/41260/673c705f-d802-47a9-8117-fead98729d18.png)](https://hubspot-cta-redirect-na2-prod.s3.amazonaws.com/cta/redirect/41260/673c705f-d802-47a9-8117-fead98729d18) ## Additional Resources - View 10 in-depth [videos on EDA/Interface A](https://www.cimetrix.com/eda-in-depth?hsLang=en) - Download the white paper on the[ SEMI EDA/Interface A Standards](https://www.cimetrix.com/semiinterfaceastandards-overview?hsLang=en) - Download the presentation [The Power of E164: EDA Common Metadata](https://www.cimetrix.com/power_of_e164_eda_common_metadata?hsLang=en) - View the complete list of our [SEMI EDA software products and tools](https://www.cimetrix.com/eda-swproducts?hsLang=en) **Top Blog Posts on [EDA/Interface A](https://www.cimetrix.com/blog/topic/eda-interface-a?hsLang=en)** - [EDA Applications and Benefits for Smart Manufacturing Series](https://www.cimetrix.com/blog/topic/eda-in-smart-manufacturing-series?hsLang=en) - [Models in Smart Manufacturing Series](https://www.cimetrix.com/blog/topic/models-in-smart-manufacturing-series?hsLang=en) [![Read the White Paper](https://hubspot-no-cache-na2-prod.s3.amazonaws.com/cta/default/41260/e34d8e81-5df8-475e-be05-3480a13bad35.png)](https://hubspot-cta-redirect-na2-prod.s3.amazonaws.com/cta/redirect/41260/e34d8e81-5df8-475e-be05-3480a13bad35) Products - [**Smart Equipment**](https://www.cimetrix.com/equipment) - [CIM300](https://www.cimetrix.com/cim300) - [CIMConnect](https://www.cimetrix.com/cimconnect) - [CIMPortal Plus](https://www.cimetrix.com/cimportal) - [CIMControlFramework](https://www.cimetrix.com/cimcontrolframework) - [**Smart Factory**](https://www.cimetrix.com/factory) - [Sapience](https://www.cimetrix.com/sapience) - [**Utilities**](https://www.cimetrix.com/utilities) - [EquipmentTest](https://www.cimetrix.com/equipmenttest) - [ECCEPlus](https://www.cimetrix.com/ecceplus) - [EDATester](https://www.cimetrix.com/edatester) Platform - [Sapience](https://www.cimetrix.com/sapience) Support - [**Login](https://www.cimetrix.com/online-support) - [**801-256-6501](tel:801-256-6501) - [**support@cimetrix.com](mailto:cimetrix-support@pdf.com) Ecosystem - [Industries](https://www.cimetrix.com/industries) - [Worldwide Partners](https://www.cimetrix.com/partners) - [Support](https://www.cimetrix.com/support) - [Training](https://www.cimetrix.com/training) Technologies - [SECS/GEM](https://www.cimetrix.com/semi-secs-gem-intro) - [PV2](https://www.cimetrix.com/pv2) - [GEM300](https://www.cimetrix.com/gem300) - [EDA/Interface A](https://www.cimetrix.com/interfacea) - [SEMI Standards](https://www.cimetrix.com/semi-standards) Resources - [Resources Home](https://www.cimetrix.com/resources) - [Datasheets](https://www.cimetrix.com/resources-datasheets) - [Tech Overviews](https://www.cimetrix.com/resources-technical-overviews) - [White Papers](https://www.cimetrix.com/resources-white-papers) - [eBooks](https://www.cimetrix.com/resources-ebooks) - [Case Studies](https://www.cimetrix.com/resources-case-studies) - [Videos](https://www.cimetrix.com/resources-videos) - [Presentations](https://www.cimetrix.com/resources-presentations) Company - [Blog](https://www.cimetrix.com/blog) - [News](https://www.cimetrix.com/news) - [Events](https://www.cimetrix.com/events) - [About Us](https://www.cimetrix.com/about) - [Contact Us](https://www.cimetrix.com/contact) Location Cimetrix Incorporated 6979 South High Tech Drive Salt Lake City, UT 84047-3757, USA [cimetrix-contact@pdf.com](mailto:cimetrix-contact@pdf.com) [![Cimetrix-PDF-combined-logo-footer](https://www.cimetrix.com/hubfs/logos/Cimetrix-PDF-combined-logo-footer.png)](https://www.cimetrix.com/?hsLang=en) Copyright © 2024 PDF Solutions, Inc. All Rights Reserved. | [Privacy Policy](https://www.cimetrix.com/privacy-policy?hsLang=en) [![twitter](https://www.cimetrix.com/hubfs/twitter.svg) ](https://twitter.com/Cimetrix) [![youtube](https://www.cimetrix.com/hubfs/youtube.svg) ](https://www.youtube.com/channel/UC2hkUR3sNMrbH6IGeM8TtLw) [![linkedin-in](https://www.cimetrix.com/hubfs/linkedin-in.svg) ](https://www.linkedin.com/company/866619) [![facebook](https://www.cimetrix.com/hubfs/facebook.svg) ](https://www.facebook.com/cimetrixinc/?ref=aymt_homepage_panel) ![](https://www.cimetrix.com/hs-fs/hubfs/1BrxMenu/Cimetrix360.png?width=358&name=Cimetrix360.png)
