EDA/Interface A Client Application and Equipment Connection Emulator

Cimetrix ECCE  Plus

ECCE™ Plus, the Cimetrix Equipment Client Connection Emulator, is the latest version of a fully functional Equipment Data Acquisition (EDA) reference client with an easy-to-use graphical user interface that OEMs and fabs can use to test the connection to an EDA/Interface A-enabled equipment, and verify the format and behavior of all the messages defined by the SEMI EDA standards (E125, E132, and E134). ECCE Plus supports both EDA Freeze Version I (1105) and Freeze Version II (0710).

Other features of ECCE Plus enable users to browse the equipment metadata model, query individual parameter values, define and activate Data Collection Plans (DCPs), view the contents of the resulting data collection reports in raw, tabular, or strip chart form, and store that information in .csv files for subsequent analysis. It also provides diagnostic functions and full SOAP logging of all message traffic to help diagnose potential problems in the equipment’s implementation of the standards.

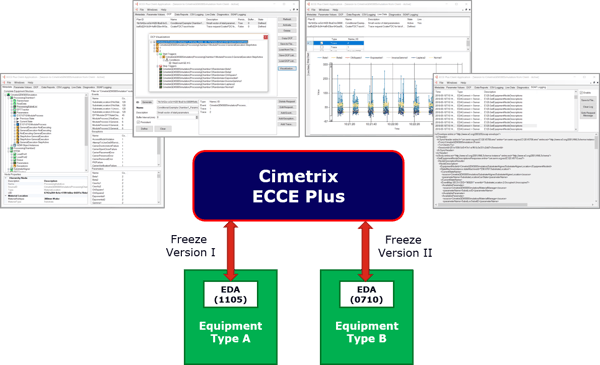

The diagram below shows how ECCE Plus is used as an EDA client.

ECCE Plus diagram

Originally developed in cooperation with SEMATECH and offered for free to the industry for over eight years, ECCE Plus is now a fully supported Cimetrix software product available for purchase. ECCE Plus is also included with the purchase of certain Cimetrix products. If you would like more information about ECCE Plus, please contact Cimetrix sales.

System Requirements

  • .NET 3.5 SP1
    Note this Microsoft supplied software package may require installation on some platforms.
  • Hard Drive Space: 100 MB
  • 2GB RAM
  • 2GHz Dual Core CPU
  • Protocols: TCP/IP
